With high DER penetration, Utilities are mandating telemetry for larger DER’s to be connected to Utility DERMS or SCADA/ADMS. A good example is the Electric Rule 21 interconnection by the California Public Utilities Commission mandates the interconnection standards for a select set of renewable generators. These interconnection requirements would require Inverters to support IEEE 2030.5 or DNP3 and need to connect to Utility SCADA Systems directly or through an Aggregator initially for monitoring purposes and later for control as well. The requirements also mandate compliance with cybersecurity requirements as specified by the utility or as per SIWG and CSIP in California.

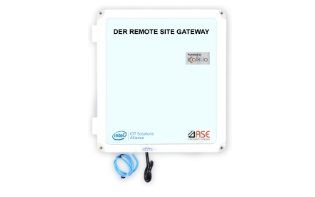

Rule 21 Customer Owned Telemetry Gateway
SYNC 2310 remote site gateway supports IEEE 2030.5, DNP3, SunSpec Modbus, IEC 104, IEC61850, and more.
IEEE2030.5 DER Gateway Software
Software Gateway for Solar and Batter Inverters to be Rule 21 and UL 1741 SB Compliant. Supports IEEE 2030.5, SunSpec Modbus, DNP3, MQTT and more
IEEE2030.5 DER Aggregator Headend
A secure IEEE 2030.5, Aggregator, Server and Middleware. Supports Integration with Utility DERMS Head-end, SCADA, and Cloud
Remote Device Access for DER
A secure remote device access and management service for your DER equipment and assets for firmware and security updates and settings management.
Smart Inverter Embedded Modules
Upgrade your Solar and Battery Inverters to be compliant with UL 1741 SB. Supports SunSpec Modbus, DNP3 and IEEE 2030.5
IEEE2030.5 Gateways for Smart Inverters
UL 1741 SB Compliant Telemetry Gateway for Solar and Battery Inverters and DERs. Supports SunSpec Modbus, DNP3 to IEEE 2030.5, OPC UA, and MQTT
Rule 21 Customer Owned Telemetry Gateway
CA Rule 21 Customer Owned Telemetry Gateway is a SunSpec Certified IEEE 2030.5 and DNP3 Solution that meet almost all US Utilities Interconnection requirements. The Telemetry Gateway Solution is used to interconnect Distributed Energy Resource (DER) site with the utility headend system, over IEEE 2030.5 and DNP3. The Telemetry Solution also support data acquisition from the AC and DC side of the DER site, act as DAS (Data Acquisition System) for PV / Storage / Weather monitoring in addition to complying with Interconnection and SGIP requirements and push the data to AWS, Azure Data Lake for Analytics.
ASE’s Telemetry Solution for Utility Interconnection, can communicate with the DER devices on-site, e.g., smart inverter or Energy Management System (EMS) or BESS or Site Meters or Reclosers, using any of the communication interfaces defined in IEEE 1547-2018 (Modbus, DNP3, and IEEE 2030.5) or using MQTT, OPC UA, OCPP etc., Common Smart Inverter Profile (CSIP) certified IEEE 2030.5 client and aggregator client support in the Telemetry Solution helps the utility to monitor and control any DER locations regardless of the communication capability of the field devices, thereby reducing overall interconnection costs.
ASE Telemetry Gateway Solution with Telemetry, Data Acquisition System capabilities of the AC and DC side of the DER, and a comprehensive device management service through ASE/Kalkitech’s kalki.io device management and middleware solution on Public or On-Prem / Private Cloud. It provides a secure, centralized device management service. Kalki.io Device Management supports remote update of gateway firmware, security patches, license, and configuration files. It also acts as a central repository for configuration, settings, and logs retrieved from the field gateways. Kalki.io can also be useful for continuous monitoring of events and alarms from the gateway and helps users to take necessary actions on time, thereby minimizing downtime and truck rolls.

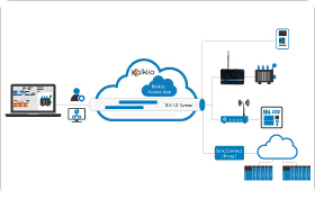

Kalki.io remote device maintenance access service provides a role-based remote configuration and management access for field devices such as inverters, DER controllers, storage controllers, or meters by extending connectivity from the programming port of the field device with the engineering and configuration tool situated at a remote location over a public/ private network on a secured link.
- PG&E Approved Customer Owned Telemetry Gateway Solution
- SCE Advise Letter 5032-E Compliant Telemetry Solution
- Secure, Rugged DER Telemetry Gateway
- DER Data Acquisition System (DAS) Support for AC and DC side of the DER
- SunSpec CSIP certified IEEE 2030.5 aggregator client used for utility integration
- Field device integration supported over – Sunspec Modbus, DNP3.0 Serial and TCP, IEC61850
- OPC UA, MQTT, IEC60870, DLMS, SNMP protocols supported
- The device is secured from the ground up, including OS, kernel, and applications software, user permissions, firewalls
- All software releases and patches are signed using manufacture specific PKI trust chains
- Role-based remote management and device maintenance access managed and maintained by ASE/Kalkitech-Systems PKI infrastructure
- Rule 21 PKI infrastructure approved by utility/regulator can be used for establishing IEEE2030.5 connection with utility DER Headend Server
- Secured remote device access for field equipment maintenance and updates (e.g., Inverters or DER controller configuration)
- Basic digital and analog logic programming supported. Enhanced Real Time Automation Controller support based on IEC 61131-3
IEEE2030.5 EDGE SOFTWARE

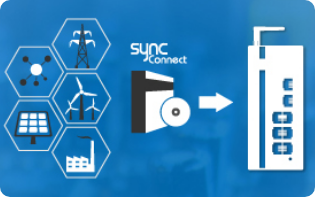

kalki.io edge software gateway software supports all IEEE 1547-2018 protocols, namely IEEE2030.5, SunSpec Modbus, DNP3 and is ideal to integrate with any inverter, string combiner, weather sensor, battery controllers or meter seamlessly and be UL1741-SB compliant. It supports REST API, MQTT, OPC UA, IEC 60870-5-104 and DLMS COSEM thereby enabling integration with all types of DER equipments and helps utility interconnection and market integration. It also together with kalki.io cloud provides remote device management, firmware update. kalki.io edge enables secure connectivity with each device remotely for configuration and maintenance purposes. It runs in any standard Linux OS-based hardware/ Virtual Machines/ Containers.
IEEE 2030.5 Client Gateway can be deployed within an Inverter, in a Controller, or as a standalone gateway using any off-the-shelf hardware. With support for X.509 certificate, strong NERC/CIP compliance configuration support, support for TPM and TLS 1.2, this is ideal for a faster go-to-market. Given the support for IEEE 1547, IEEE 2030.5, SunSpec Modbus, DNP3 and IEC protocols and security requirements together with integration capability with multiple devices, Kalki.io Edge is ideal for building a single unit that can be deployed not just for the Rule 21 market but worldwide.
You can easily certify your Solar and Battery Inverters for UL 1741 SB with the gateway.
More information on Kalki.io Edge Gateway Software is available here
Rule 21 IEEE 2030.5 Aggregator
ASE IEEE 2030.5 DER Aggregator is the approved solution for Interconnection in PG&E territory for DER's under Rule 21. Rule 21 IEEE 2030.5 Aggregator software based on kalki.io is a scalable SaaS / Cloud solution supports IEEE 2030.5 Server and Client, SunSpec Modbus and DNP3 helps aggregate small and large DER sites and provide a single integrated connection to the Utility SCADA / DERMS servers. Certified by PG&E and under certification at various utilities, the Aggregator is a cost effective means of interconnecting your DER with the Utility Grid and sending data through the Aggregator to the Utility SCADA / DERMS. Further, it supports SCADA / Utility protocols like DNP3, ICCP and OPC UA and REST/JSON APIs. The Aggregator will act as a Cloud Gateway for IEEE 2030.5 or DNP3 or Modbus devices, enabling many to many protocol conversion and data aggregation.
PG&E Approved for Rule 21 Interconnection
Depending on the agreement between the Utility and Aggregator or the Renewable Developer, the Aggregator software can be configured to the appropriate protocol or interface.
With strong PKI and X.509 infrastructure in the kalki.io aggregator platform, customers can install and integrate their own specific PKI system to kalki.io. Support for SunSpect mandated PKI system is easily possible.
The Aggregator provides remote monitoring and management of solar generation plants and their associated components by securely connecting with inverters, weather stations, irradiance sensors, revenue meters, and batteries as required for the deployment.
Supports multiple makes of inverters and revenue meters
Edge Storage and analytics to mitigate internet/ communication loss
User-friendly interface with single line diagram, dashboards, report & alerts
REST API and cloud/IoT platform connectors for building additional applications
Remote Device Management
Rule 21 implementation will result in a large number of small solar generators getting connected to the Utility Grid and communicating to the utility directly or through an Integrator. It is humanly impossible to manage, maintain and keep up to date these systems. Further cybersecurity audits and analyses of these systems also need to be done routinely. Kalki.io Remote Device Maintenance Access provides remote configuration and management access for field devices by securely extending the connectivity between the device’s programming port and engineering tool over a public/private network. Remote Device Access can also be used to acquire data from a device over a wide number of utilities, industry, and IoT protocols supported.
More details on Remote Device Access are available here
The secure on-demand connection between the device and a remote workstation for device configuration and troubleshooting
kalki.io acquire data from devices over 100+ industrial and utility-specific protocols
Role-based access control on-device data and configuration access
IEEE2030.5 Gateways for Smart Inverters
Rule 21 / CPUC regulations in California require all Smart Inverters to be compliant with IEEE 2030.5. This compliance can be met by directly implementing IEEE 2030.5 in the Smart Inverter or using an IEEE 2030.5 / CSIP Certified Gateway. UL 1741 SB is being adopted by most states and the gateway is compliant to all IEEE 1547-2018 protocols and help you be compliant quickly.

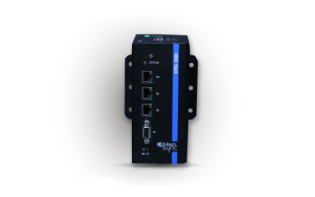

SYNC2000 Gateways are ideal for this requirement. They are rugged, compact, and secure hardware that supports IEEE 2030.5, SunSpec Modbus, DNP3, and IEC 61850. The SYNC 2101 family supports native Digital I/O and Analog Inputs with a comprehensive Logic Programming Engine based on IEC 61131. The SYNC 2101 controller can be used to communicate directly with Utility SCADA or head-end over native TLS 1.2 connections or over DNP3, both for monitoring and also to do control action.
With support for Cloud Connectivity to Azure, AWS, and IBM Cloud IoT infrastructure and generic MQTT support and support for kalkitech device management framework, SYNC2000 and SYNC 2101 are for complying with Rule 21 requirements.
Smart Inverter Embedded Modules
Convert Modbus, DNP3 to IEEE 2030.5 and MQTT for Utility, Aggregator & Cloud Interconnection

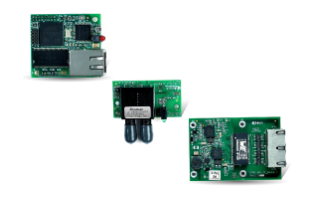

SYNC200 Embedded Modules are ideal for this requirement. They are rugged, compact, and secure hardware that supports IEEE 2030.5, SunSpec Modbus, DNP3, and IEC 61850 and can be integrated into your Smart Inverters. SYNC200 modules support APIs to build a proprietary interface to your Inverter Application.
Solution Components
- IEEE 2030.5 Gateway Edge Software that supports Modbus, DNP3, IEC 61850, DLMS, and IEEE 2030.5 with X.509 support and Cyber security support
- Edge Hardware that supports Modbus, DNP3, IEC 61850, DLMS, and IEEE 2030.5 with X.509 support and cyber security support. The hardware also comes with Digital I/O and Analog I/O to monitor hardwired inputs or take control action.
- Aggregator Software that supports IEEE 2030.5 Server and Client, in addition to DNP3, SunSpec Modbus, IEC 61850, DLMS, etc., that can integrate with renewable generators, batteries, etc., as well as Utility SCADA Systems over IEEE 2030.5 or other Utility SCADA Protocols
- Remote device management with monitoring & control dashboards for managing and maintaining renewable generators and storage.
Data Collection
- Real-time and historic data acquisition
- Proven Interoperability with sensors, controllers, measurement devices, and protection relays
- A large library of protocol support for standard and legacy protocols
Security
- TLS 1.2 based communication security
- Secure role-based access control using X.509 PKI standard
Data Processing
- Real-time streaming and data processing
- User-configurable data processing
- Event handling, and time-based data
- ML and AI integration
Scalability
- Large deployment, monitoring, and management support
- Scales with a large number of devices and data
- Scales with edge device resources
- Containerized services
Data Storage
- Store data periodically or on an event basis
- Time series database for optimal performance
- Database management options
Manageability
- Remote configuration and settings
- Over-the-air firmware and patches updates
Data Distribution
- Amazon AWS
- Azure
- MQTT
- OPC UA
- Google Cloud
Flexibility
- Deployable on your hardware and OS
- Peer-to-peer data transfer capability
- Choose the best bread hardware suitable for your application
- Integrate with local/remote SCADA systems as well as cloud platforms
